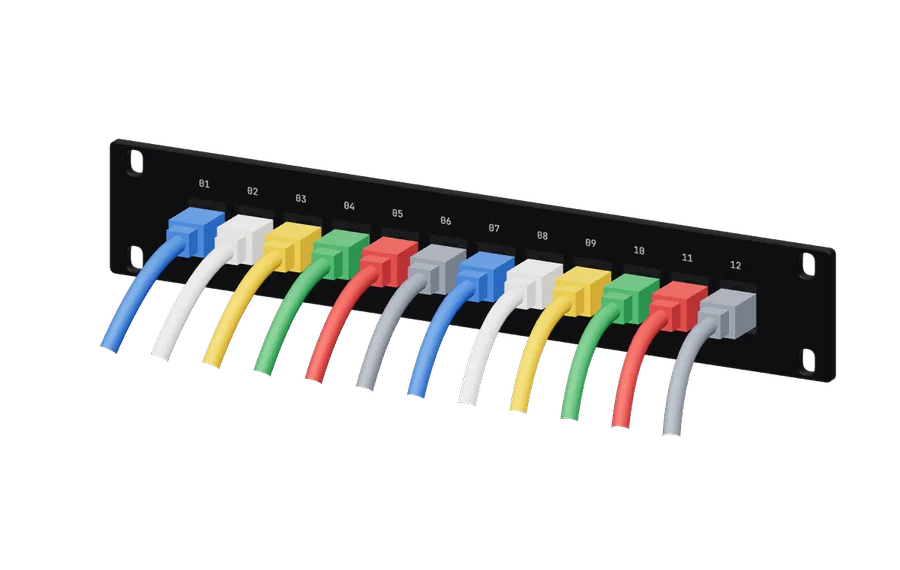

3D render of the Rapink 12-Port Cat6 Punch-Down Panel 1U in its 10-inch rack mount

Network · Rapink

Rapink 12-Port Cat6 Punch-Down Panel 1U

C6PP-PUNCH12 · 110 punch-down · 10G. Street price is about $14.99.

Rack units: 1U
Depth: 40 mm
Power idle / load: None
Weight: 0.20 kg

Put it in a rack →Store page ↗

Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.

Running cost

$0.00 /mo

Passive part: no power draw.

Mounting

Ready-made 10″ part. It bolts straight to the rails, so there is nothing to print.

Hardware

M6 cage nut + M6×16 screw4×
Cat6 patch cable, 0.25 m (optional)12×

Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.

Fits these frames

At 40 mm deep it fits every frame in the planner, including the 200 mm DeskPi T0 and T1.

DeskPi RackMate T0 4U · 200 mm✓ Fits
DeskPi RackMate T1 8U · 200 mm✓ Fits
DeskPi RackMate T2 12U · 260 mm✓ Fits
DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
Tecmojo 4U Mini Rack 4U · 200 mm✓ Fits
Tecmojo 6U Mini Rack 6U · 200 mm✓ Fits
Tecmojo 9U Mini Rack 9U · 200 mm✓ Fits
Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
3D-Printed Modular Frame 8U · 200 mm✓ Fits
