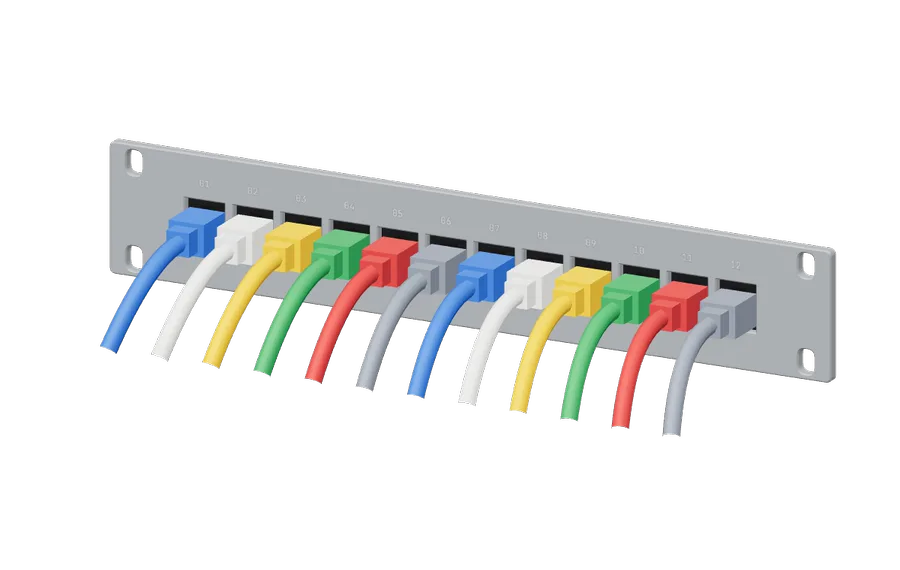

3D render of the 12-Port Keystone Patch Panel in its 10-inch rack mount

Network

12-Port Keystone Patch Panel

Cat6 jacks · cable stubs.

Rack units: 1U
Depth: 32 mm
Power idle / load: None
Weight: 0.16 kg

Put it in a rack →

Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.

Running cost

$0.00 /mo

Passive part: no power draw.

3D-printed mount

58 g · 2h 42m print

12-port keystone panel. About $1.16 of PLA at $20/kg (0.4 mm nozzle, 0.2 mm layers).

See the model on Printables ↗

Hardware

M6 cage nut + M6×16 screw4×
Cat6 keystone jack12×
Cat6 patch cable, 0.25 m (optional)12×

Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.

Fits these frames

At 32 mm deep it fits every frame in the planner, including the 200 mm DeskPi T0 and T1.

DeskPi RackMate T0 4U · 200 mm✓ Fits
DeskPi RackMate T1 8U · 200 mm✓ Fits
DeskPi RackMate T2 12U · 260 mm✓ Fits
DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
Tecmojo 4U Mini Rack 4U · 200 mm✓ Fits
Tecmojo 6U Mini Rack 6U · 200 mm✓ Fits
Tecmojo 9U Mini Rack 9U · 200 mm✓ Fits
Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
3D-Printed Modular Frame 8U · 200 mm✓ Fits
