Running cost
≈ $0.54 /mo at idle
5 W around the clock is 3.6 kWh a month, about $6.48 a year at $0.15/kWh. Flat out at 11 W it would be $1.19 a month.
Set your own electricity price under Power draw in the planner.
Network · MikroTik

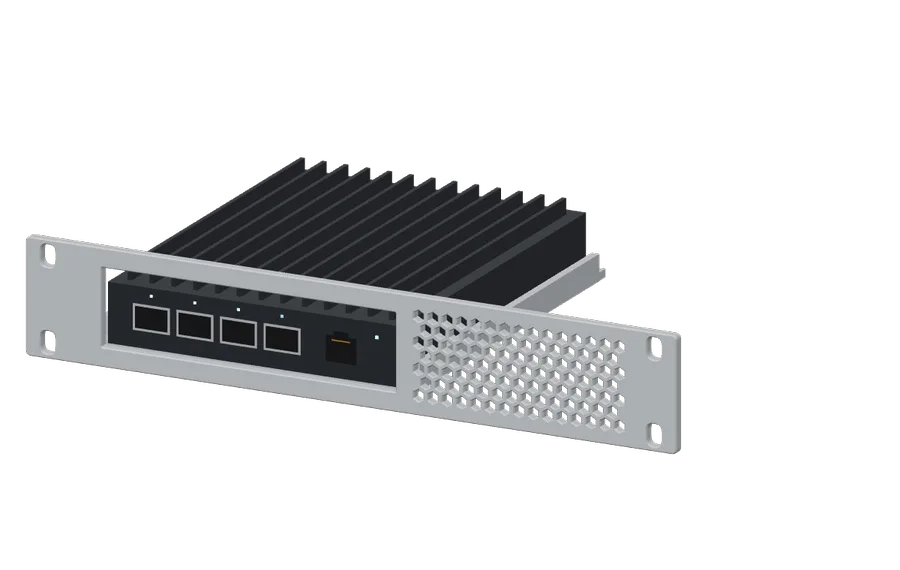

CRS305-1G-4S+IN
4× SFP+ 10G · printed 1U tray. Street price is about $149.
- Rack units
- 1U
- Depth
- 150 mm
- Power idle / load
- 5 W / 11 W
- Weight
- 0.62 kg
Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.
3D-printed mount
66 g · 3h 06m print
CRS305 1U tray. About $1.32 of PLA at $20/kg (0.4 mm nozzle, 0.2 mm layers).
Hardware
- M6 cage nut + M6×16 screw4×
- M3×5×4 heat-set insert4×
- M3×8 socket head screw4×
Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.
Fits these frames
At 150 mm deep it fits every frame in the planner, including the 200 mm DeskPi T0 and T1.
- DeskPi RackMate T0 4U · 200 mm✓ Fits
- DeskPi RackMate T1 8U · 200 mm✓ Fits
- DeskPi RackMate T2 12U · 260 mm✓ Fits
- DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
- DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
- DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
- DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
- Tecmojo 4U Mini Rack 4U · 200 mm✓ Fits
- Tecmojo 6U Mini Rack 6U · 200 mm✓ Fits
- Tecmojo 9U Mini Rack 9U · 200 mm✓ Fits
- Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
- 3D-Printed Modular Frame 8U · 200 mm✓ Fits
