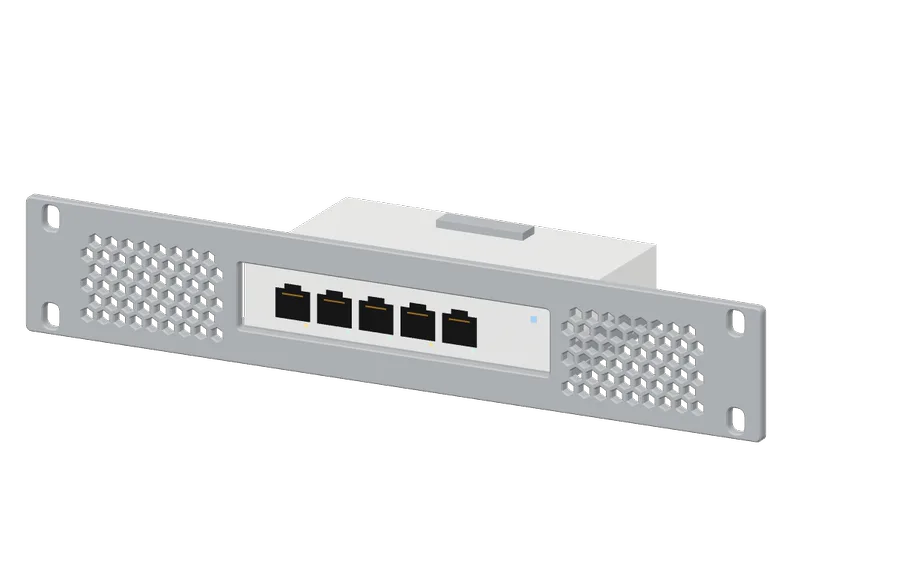

3D render of the UniFi Switch Flex Mini in its 10-inch rack mount

Network · Ubiquiti

UniFi Switch Flex Mini

5× GbE · printed 1U cradle. Street price is about $29.

Rack units: 1U
Depth: 76 mm
Power idle / load: 2 W / 5 W
Weight: 0.11 kg

Put it in a rack →Store page ↗

Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.

Running cost

≈ $0.22 /mo at idle

2 W around the clock is 1.4 kWh a month, about $2.59 a year at $0.15/kWh. Flat out at 5 W it would be $0.54 a month.

Set your own electricity price under Power draw in the planner.

3D-printed mount

58 g · 2h 36m print

Flex Mini 1U cradle. About $1.16 of PLA at $20/kg (0.4 mm nozzle, 0.2 mm layers).

See the model on Printables ↗

Hardware

M6 cage nut + M6×16 screw4×
M3×5×4 heat-set insert2×
M3×8 socket head screw2×

Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.

Fits these frames

At 76 mm deep it fits every frame in the planner, including the 200 mm DeskPi T0 and T1.

DeskPi RackMate T0 4U · 200 mm✓ Fits
DeskPi RackMate T1 8U · 200 mm✓ Fits
DeskPi RackMate T2 12U · 260 mm✓ Fits
DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
Tecmojo 4U Mini Rack 4U · 200 mm✓ Fits
Tecmojo 6U Mini Rack 6U · 200 mm✓ Fits
Tecmojo 9U Mini Rack 9U · 200 mm✓ Fits
Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
3D-Printed Modular Frame 8U · 200 mm✓ Fits

Options in the planner

2× units+2 W idle · +26 g print

Sample builds with it

The Silent 4U DeskCephT0

Each opens in the planner as your own copy.
