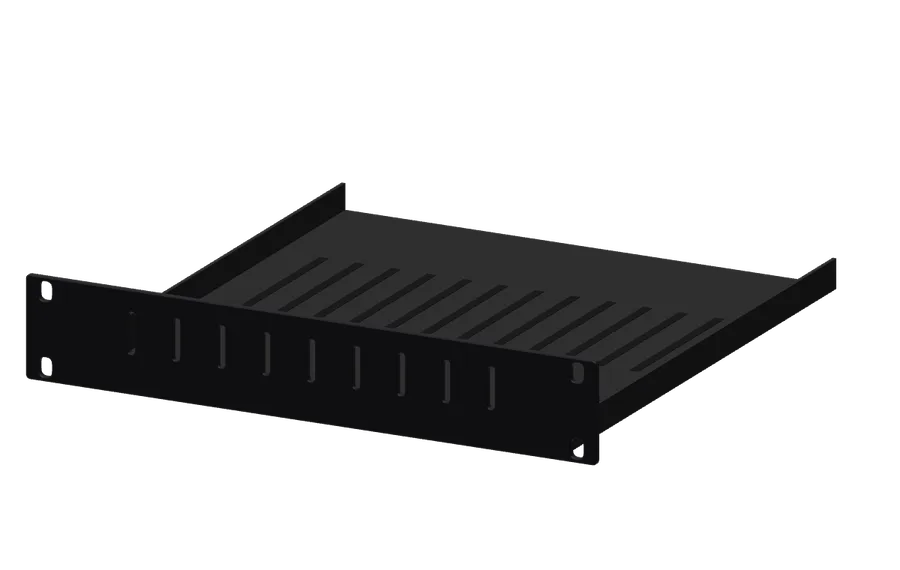

3D render of the GeeekPi 1U Shelf, 260 mm deep in its 10-inch rack mount

Shelves & Cable Mgmt · GeeekPi

GeeekPi 1U Shelf, 260 mm deep

Vented · for T2 / T0-Plus / T1-Plus / TL1. Street price is about $21.83.

Rack units: 1U
Depth: 255 mm
Power idle / load: None
Weight: 0.69 kg

Put it in a rack →Store page ↗

Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.

Running cost

$0.00 /mo

Passive part: no power draw.

Mounting

Ready-made 10″ part. It bolts straight to the rails, so there is nothing to print.

Hardware

M6 cage nut + M6×16 screw4×

Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.

Fits these frames

At 255 mm deep it needs a 260 mm frame. The 200 mm ones, like the DeskPi T0 and T1, are too shallow.

DeskPi RackMate T0 4U · 200 mm✕ Too deep for 200 mm
DeskPi RackMate T1 8U · 200 mm✕ Too deep for 200 mm
DeskPi RackMate T2 12U · 260 mm✓ Fits
DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
Tecmojo 4U Mini Rack 4U · 200 mm✕ Too deep for 200 mm
Tecmojo 6U Mini Rack 6U · 200 mm✕ Too deep for 200 mm
Tecmojo 9U Mini Rack 9U · 200 mm✕ Too deep for 200 mm
Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
3D-Printed Modular Frame 8U · 200 mm✕ Too deep for 200 mm
