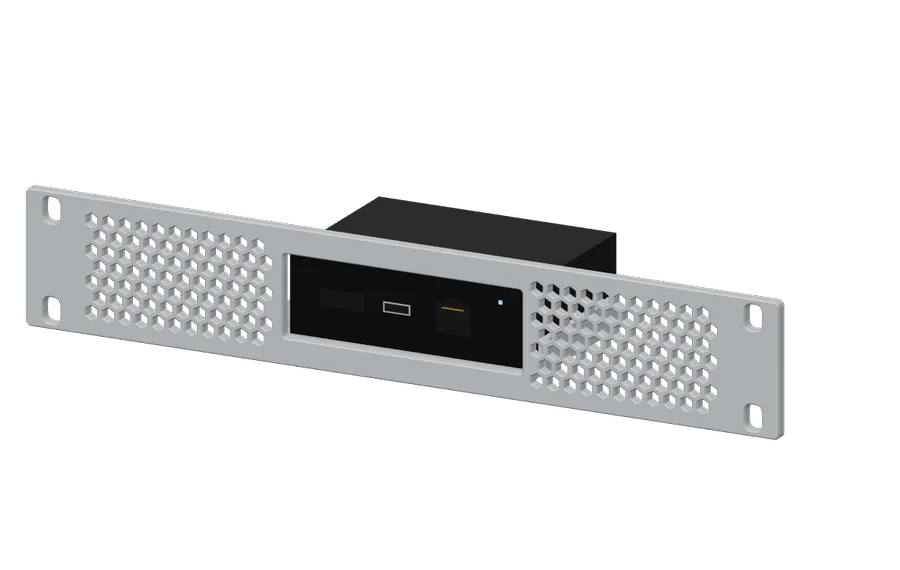

3D render of the GL.iNet Comet KVM in its 10-inch rack mount

SBC & KVM · GL.iNet

GL.iNet Comet KVM

GL-RM1 IP-KVM · printed panel + 2 keystones. Street price is about $69.

Rack units: 1U
Depth: 64 mm
Power idle / load: 2 W / 4 W
Weight: 0.10 kg

Put it in a rack →Store page ↗

Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.

Running cost

≈ $0.22 /mo at idle

2 W around the clock is 1.4 kWh a month, about $2.59 a year at $0.15/kWh. Flat out at 4 W it would be $0.43 a month.

Set your own electricity price under Power draw in the planner.

3D-printed mount

38 g · 1h 42m print

Comet KVM 10" panel. About $0.76 of PLA at $20/kg (0.4 mm nozzle, 0.2 mm layers).

See the model on Printables ↗

Hardware

M6 cage nut + M6×16 screw4×
M3×5×4 heat-set insert4×
M3×8 socket head screw4×

Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.

Fits these frames

At 64 mm deep it fits every frame in the planner, including the 200 mm DeskPi T0 and T1.

DeskPi RackMate T0 4U · 200 mm✓ Fits
DeskPi RackMate T1 8U · 200 mm✓ Fits
DeskPi RackMate T2 12U · 260 mm✓ Fits
DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
Tecmojo 4U Mini Rack 4U · 200 mm✓ Fits
Tecmojo 6U Mini Rack 6U · 200 mm✓ Fits
Tecmojo 9U Mini Rack 9U · 200 mm✓ Fits
Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
3D-Printed Modular Frame 8U · 200 mm✓ Fits

Options in the planner

2× units+2 W idle
