Running cost
≈ $0.65 /mo at idle
6 W around the clock is 4.3 kWh a month, about $7.78 a year at $0.15/kWh. Flat out at 25 W it would be $2.70 a month.
Set your own electricity price under Power draw in the planner.
Compute · Beelink

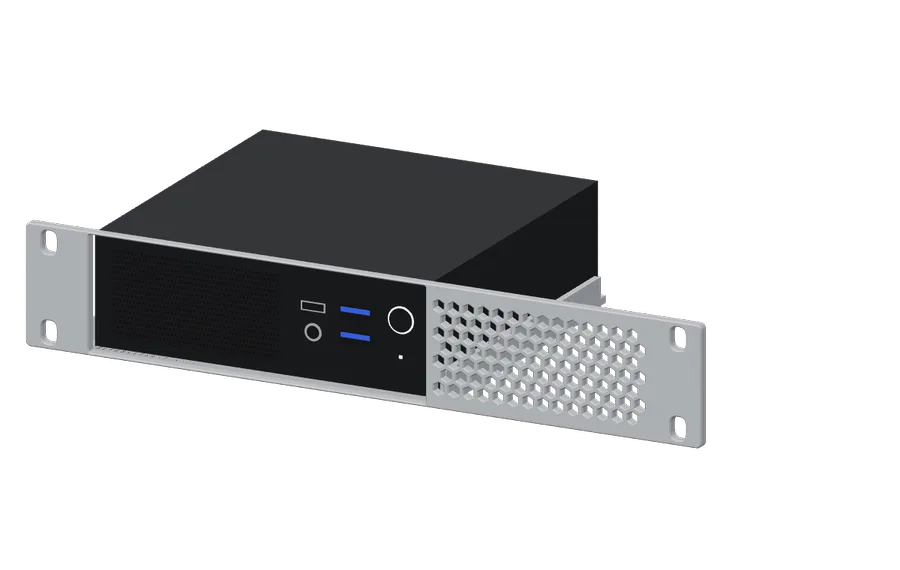

Beelink EQ14 (N150)
N150 mini PC · internal PSU · printed 1U mount. Street price is about $385.
- Rack units
- 1U
- Depth
- 130 mm
- Power idle / load
- 6 W / 25 W
- Weight
- 0.50 kg
Opens the planner and mounts it in the highest free slot of your rack. Ctrl+Z takes it back out.
3D-printed mount
64 g · 3h 00m print
EQ14 10" mount. About $1.28 of PLA at $20/kg (0.4 mm nozzle, 0.2 mm layers).
Hardware
- M6 cage nut + M6×16 screw4×
- M3×5×4 heat-set insert4×
- M3×8 socket head screw4×
Rack screws are for DeskPi and Tecmojo rails. A printed frame uses M5 heat-set inserts instead.
Fits these frames
At 130 mm deep it fits every frame in the planner, including the 200 mm DeskPi T0 and T1.
- DeskPi RackMate T0 4U · 200 mm✓ Fits
- DeskPi RackMate T1 8U · 200 mm✓ Fits
- DeskPi RackMate T2 12U · 260 mm✓ Fits
- DeskPi RackMate T0-Plus 4U · 260 mm✓ Fits
- DeskPi RackMate T1/2 Plus 6U · 260 mm✓ Fits
- DeskPi RackMate T1-Plus 8U · 260 mm✓ Fits
- DeskPi RackMate TL1 (open frame) 10U · 260 mm✓ Fits
- Tecmojo 4U Mini Rack 4U · 200 mm✓ Fits
- Tecmojo 6U Mini Rack 6U · 200 mm✓ Fits
- Tecmojo 9U Mini Rack 9U · 200 mm✓ Fits
- Tecmojo 12U Mini Rack 12U · 260 mm✓ Fits
- 3D-Printed Modular Frame 8U · 200 mm✓ Fits
